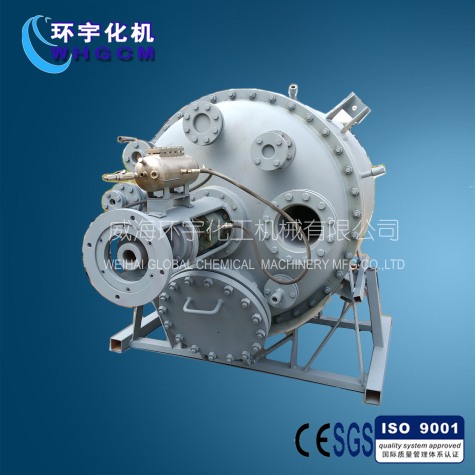

Industrial reactor is characterized by rapid heating, high temperature resistance, corrosion resistance, hygiene, no environmental pollution, no need for automatic heating of boiler, easy use, etc. It is widely used in petroleum, chemical industry, rubber, pesticide, dyestuff, medicine, food, sulfurization, nitration, hydrogenation, alkylation, polymerization, condensation and other technological processes. It is premised on the full mixing of reactants. For heating, cooling, liquid extraction, gas absorption and other physical changes, stirring device is needed to achieve good results, and can be designed for customers, processing coil reactor.

Chemical stirring industrial reactor is an ideal leak-free reactor for chemical reaction at high temperature and high pressure. The key component of the reactor, magnetic coupling drive, is a kind of transmission device which uses permanent magnet material to couple transmission. It changes the dynamic seal structure of traditional mechanical seal and packing seal stirring shaft through sleeve or packing into static seal structure. The medium is completely in the sealing chamber composed of the kettle body and the sealing cover body, which completely solves the insurmountable leakage problem caused by the dynamic sealing of the packing seal and the mechanical seal, and makes the reaction medium absolutely free of any leakage and pollution. After more than ten years of continuous improvement and improvement, the volume of magnetic stirred high-pressure reactor (100ml-50000L), temperature (-70-400 degrees C), structure, pressure (-0.1-40MPa), heating, stirring and other forms are optionally selected according to user needs.

Industrial Reactor, Batch Reactor, High Pressure Reactor, Jacketed Reactor, Steam Heating Reactor, Stainless Steel Reactor, Polymerizer, Mechanical Seal Reactor, Magnetic Seal Reactor, High Temperature High Pressure Reactor, Thermal Oil Reactor
